Артикул:

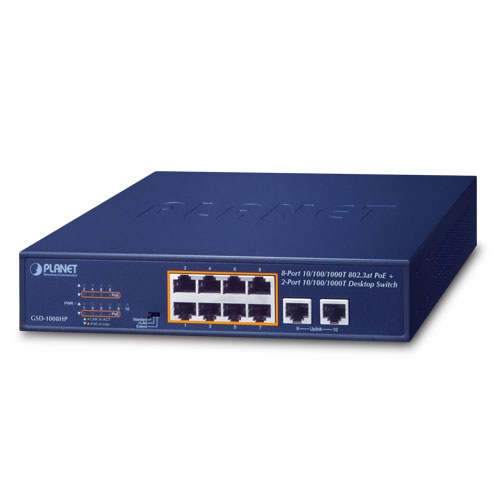

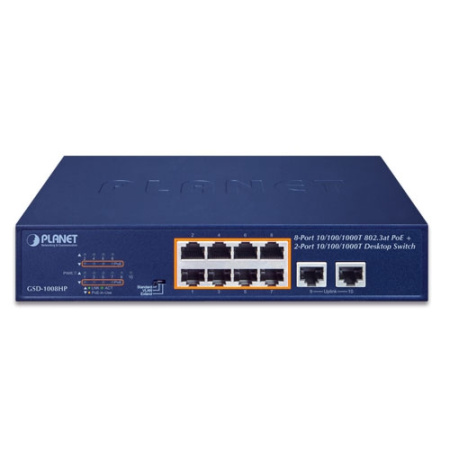

GSD-1008HP
Технические характеристики
| Hardware Specifications | |
|---|---|
| Copper Port | 10 10/100/1000BASE-T MDI/MDIX Ports |
| PoE Injector Port | 8-port with 802.3af/at PoE injector function with Port-1 to Port-8 |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 20Gbps |
| Switch Throughput@64 bytes | 13.4Mpps@64 bytes |
| MAC Address Table | 2K entries, automatic source address learning and aging |
| Maximum Frame Size | 9K bytes |
| Flow Control |
IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| LED Indicators |
System: 10/100/1000BASE-T RJ45 interfaces: PoE interfaces: |
| DIP Switch |
Selectable operation mode |
| Dimensions (W x D x H) | 220 x 150 x 43 mm (1U height) |
| Enclosure | Metal |
| Weight | 1205 g |

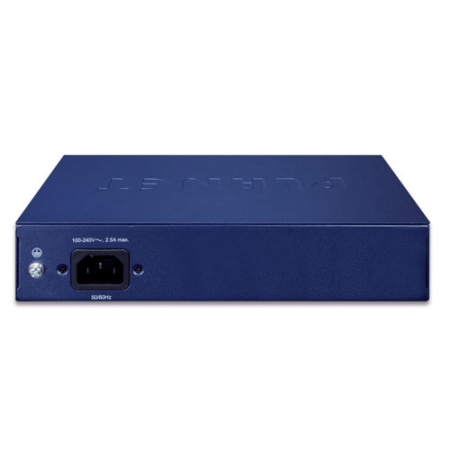

| Power Requirements | AC 100~240V, 50/60Hz, 2.5A max. |
| Power Consumption/ Dissipation |
System On: Max. 4.1 watts/13.9 BTU PoE Full Loading: Max. 124 watts/423.1 BTU |
| ESD Protection |
Contact discharge of 6KV DC Air discharge of 8KV DC |
| Thermal Fan | 1 |
| Power over Ethernet | |
| PoE Standard |
IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | Per port 54V DC, 600mA. max. 32 watts |
| Power Pin Assignment | 1/2 (+), 3/6 (-) |
| PoE Power Budget | 120 watts |
| Max. Number of Class 2 PDs | 8 |
| Max. Number of Class 3 PDs | 8 |
| Max. Number of Class 4 PDs | 4 |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance |
IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3x Flow control and back pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Environment | |
| Operating |
Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage |
Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
